creating space 4energy

You need energy to operate and produce. Thanks to our solutions, you can save the energy you get from the sun, wind, water or earth for your needs.

4EN

For Energy. Thinking about the quality of life of our children and grandchildren, we decided to design and create solutions that will give future generations access to clean and safe energy. Continuing the best traditions of Polish engineering and meeting the world’s current challenges in terms of access to a safe source of clean energy, we have designed solutions for the safe storage and management of energy necessary for functioning in the modern world.

FlexPOWER

The FlexPOWER technology was created as part of the work on the development of energy systems by an interdisciplinary team of experienced Polish engineers and specialists. Their experience and enthusiasm led to the development of a number of innovative technical and software solutions, which in combination created universal and flexible technologies available on the modern energy market under the FlexPOWER (FP) brand. Thanks to this, the user of storage systems within the FP technology gains access to unique solutions adapted to the implementation of responsible tasks in the field of industrial energy. FP technology offers a flexible approach to energy storage and processing, battery system construction and operation, as well as meeting user expectations and needs.

FPI 130-50DC

Modular Battery System

The FPI battery system with the BSCU (Battery System Control Unit) computer is a basic kit for use in battery systems built by external integrators. The product is designed as a development version of the FPA (Vehicle Battery Module). The system allows subsequent modules to be connected in parallel to the common DC bus, ensuring high flexibility in scaling the performance and capacity of target solutions. The basic battery module has a capacity of 13 kWh and a power of 5 kW. FPI battery modules are environmentally sealed (IP67), have integrated thermal insulation and a liquid thermal conditioning system. The battery unit is used in the FPY.

Specifications:

Capacity: 130 kWh

Power: 50 kW DC

Connection: 300 ÷ 400 DC

Dimensions: 0.7 x 1.0 x 1.2m



Communication:

2x RS485

1x Sunspec Modbus ETH1

1x Ethernet 100 BASE-T

1x AI 1x AO

2x DI 2x DO

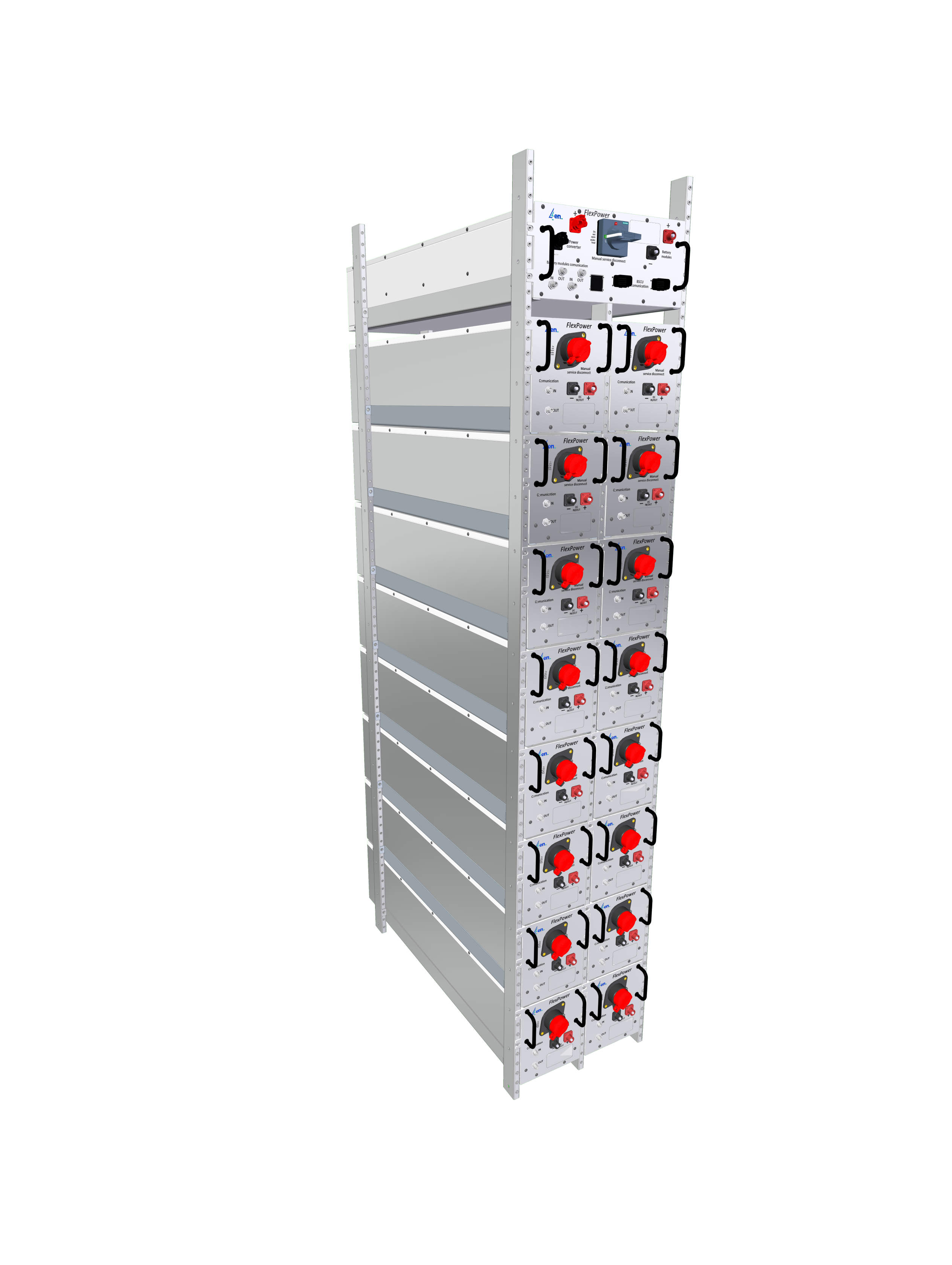

FPP 131-63DC

Modular Battery System

The FPPH14 system is made up of fourteen battery modules (NMC chemistry battery cells) connected in series to the BS-PDU electrical switchgear, which is equipped with a BMS (Battery Management Computer), current protections, a service disconnector and communication with the BSCU (Battery System Control Unit) higher-level system. basis for use in battery systems built by external integrators. The product has a power of 63 kW, a capacity of approximately 130 kWh (depending on the battery cells used) and a voltage range of 700÷940 VDC. The system is thermally conditioned by air and operates within a temperature range of +10°C ÷ +50°C. The BS-PDU switchboard supports up to sixteen FPP modules. The solution allows you to build systems up to 1000 VDC. The system is prepared for installation in standard 19″ RACK cabinets with a depth of 1200 mm. The product is intended for the industrial market. The system is used in FPF and FPD.

Specifications:

Capacity: 130 kWh

Power: 63 kW DC

Power connection: 700÷940 VDC

Dimensions: 1.2×0.5×2.5 m.

Weight: 1,200 kg

FPP 140-63DC

Modular Battery System

The FPPV16 system consists of sixteen battery modules (LFP chemistry battery cells) connected in series to the BS-PDU electrical switchgear. The switchgear is equipped with a battery management computer – BMS, current protection, service disconnector and communication with the BSCU (Battery System Control Unit). The system is a basic set for use in battery systems built by external integrators. The product has a power of 63 kW, a capacity of approximately 130 kWh (depending on the battery cells used) and a voltage range of 680÷993 VDC. The system is thermally conditioned by air and operates within a temperature range of +10°C ÷ +50°C. The BS-PDU switchboard supports up to sixteen FPP modules. The solution allows you to build systems up to 1000 VDC. The system is prepared for installation in standard 19″ RACK cabinets with a depth of 1200 mm. The product is intended for the industrial market. The system is used in FPF and FPD.

Specifications:

Capacity: 140 kWh

Power: 63 kW DC

Power connection: 680÷993 VDC

Dimensions: 1.2×0.5×2.5 m

Weight: 1,450 kg

FPY 130-50AC

Stationary Energy Storage System

The FPY is an integrated solution directly connected to the customer’s network (nN 3×400 VAC). It has installed battery modules, power converters, the necessary current protections and an autonomous control system. The warehouse is equipped with thermal and fire insulation and a fire detection and prevention system. The thermal insulation, together with a self-contained thermal conditioning system, ensures many years of trouble-free operation of the warehouse in the outdoor temperature range of -35°C to +45°C. An optional prefabricated base plate ensures quick and easy installation of the store at the customer’s site.

Specifications:

Capacity: 130 kWh

Power: 50kW AC

Connections: 3×400 AC

Dimensions: 1.5 x 1.5 x 2.2m

Weight: 2,400 kg

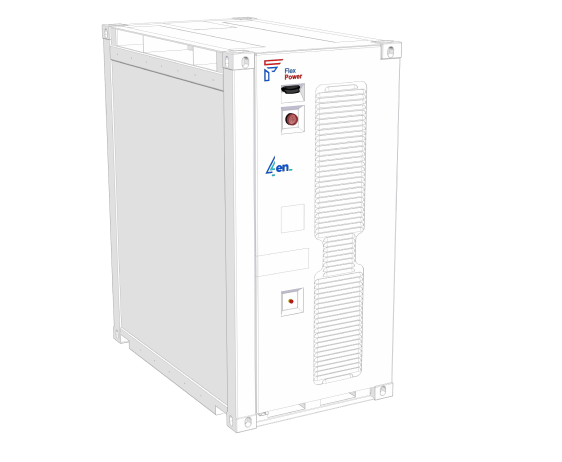

FPF 250-125DC

Scalable Energy Storage System

FPF energy storage is based on the design of a 5-foot sea container in the HC version. Space is provided for two FPPH14 or FPPV16 battery terminals. The FPF storage has a built-in thermal conditioning system based on an air heat pump and so-called „free cooling”, fire protection, thermal insulation. The system can be supplied with a prefabricated foundation plate. The system allows you to connect up to 4 x FPF in parallel, scaling power and energy. The system has built-in fire protection and is designed for outdoor use. Requires external DC/AC converter

Specifications:

Capacity: 250 kWh

Power: 125 kW DC

Connection: 680÷993 VDC

Dimensions: 1.5 x 2.4 x 2.9m.

Weight: 5,500 kg

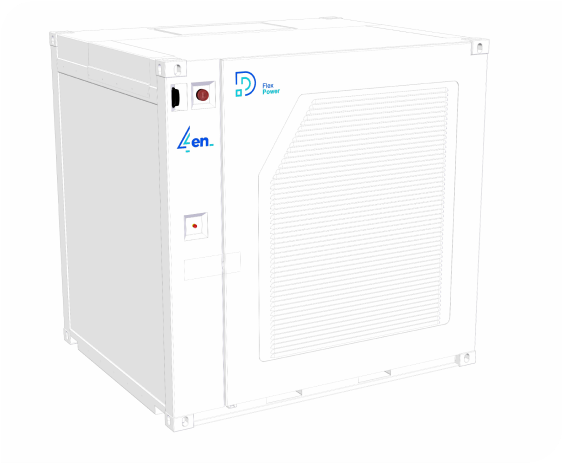

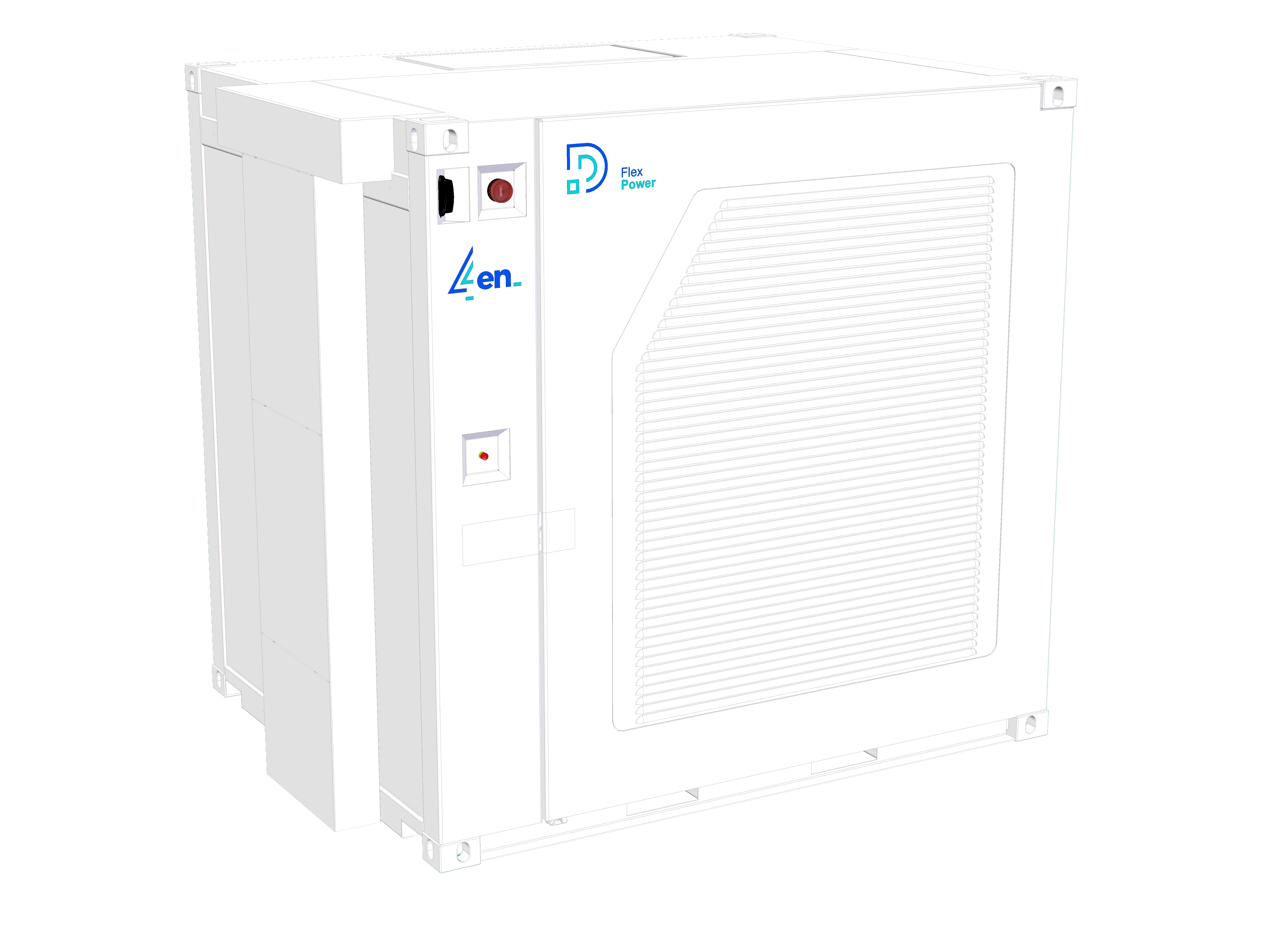

FPD 500-250DC

Industrial Energy Storage System

The FPD industrial energy storage system, based on the design of a 10-foot sea container in the HC version, is a DC system that allows the construction of scalable energy storage on the DC side from 0.5 MWh to 5 MWh every 0.5 MWh. This allows the system to be used in configurations with a central converter up to 2.5 MW or, by combining the FPD with a hybrid converter, connected to a photovoltaic (PV) system on the DC side. The scalable configuration makes it possible to optimise costs according to the application and customer requirements.

The system enables the construction of scalable storage farms with an energy density of 160 MWh/ha and a power density of 80 MW/ha. It has a built-in thermal conditioning system based on an air-to-water heat pump and free-cooling, fire protection and thermal insulation. The FPD is designed to accommodate four FPPH14 or FPPV16 battery terminals. It is designed for outdoor use. An external DC/AC converter is required.

Specifications:

Capacity: 500kWh

Power: 250kW DC

Power connection: 680÷993 VDC

Dimensions: 2.9 x 2.4 x 2.9m

Weight: 8 900 kg

FlexSYS

FlexSYS technology complements the functionality offered by FlexPOWER. It is a technology that brings together the necessary software for IT support of FlexPower devices. FlexSYS displays battery system operating parameters and business analyses, and enables device control, local balancing area management and economic optimisation of installed batteries. The applications included in the FlexSYS technological solutions have been configured to meet the expectations and needs of various business groups.

FlexSYS V

Visualization System

The FlexSYS V is a proprietary system designed to complement the FlexPOWER and FlexMOBILITY technologies and the products included in them. The database application and storage operation data presentation interface on desktop computers and mobile devices allows customers to view the operating parameters of their energy storage systems. The application combines the functionality of a database with the presentation of current and historical information. The application can be configured to act as a SCADA user interface. In this case, in addition to information from the operation of the energy storage integrated in the FlexPower technology, it can analyse and display information from other energy sources within the electrical installation. This can include grid connection parameters, renewable energy generation and customer energy consumption. It is also possible to analyse energy flows between energy sources and present statistics from the operation of the installation.

FlexMOBILITY

FlexMOBILITY technology is the most advanced group of products in terms of environmental adaptation and specificity of operation in the broadly defined world of „electromobility”. FlexMOBILITY products are characterised by their ability to operate in harsh industrial, marine and mining environments. Liquid thermal conditioning, high vibration resistance, EMC (ElectroMagnetic Compatibility) resistance and durable housings designed from the experience of aerospace half-shell constructions guarantee many years of trouble-free operation. In addition, the stable and secure BMS (Battery Management System) software that manages the battery and the multi-level safety systems provide a very high level of safety.

FPA 13-30DC

Automotive Battery System

The FPA battery system with the ABSCU (Automotive Battery System Control Unit) control computer is a basic set for use in battery systems dedicated to work vehicles. The product is designed for harsh working conditions in mining, industrial and public transport environments. The system allows subsequent modules to be connected in parallel to the common DC bus, ensuring high flexibility in scaling the performance and capacity of the target solutions. The basic battery module has a capacity of 13 kWh and a power of 30 kW. The FPA battery modules are adapted to work in aggressive and marine environments (C5 and IP67), have integrated thermal insulation and a liquid thermal conditioning system. Thanks to its modular structure, the system can be used to create energy storage systems with a capacity of up to 500 kWh.

Specifications:

Capacity: 13 kWh

Power: 30 kW DC

Connection: 300 ÷ 400 DC

Dimensions: 0.1 x 0.7 x 1.0 m

Weight: 100 kg



Communication:

3x CAN 2.0B

1x RS-485

2x Ethernet 100BASE – T

2x PWM

8x AI 2x AO

10x DI 8x DO

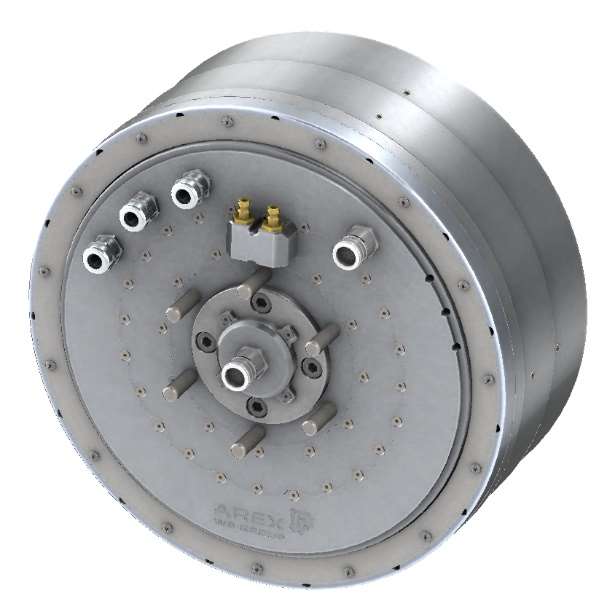

DWH-200

Direct Drive Motor

The DWH-200 is designed for direct drive installation in a wheel with a rim size of at least 17 inches. It is intended for use in the drive systems of: industrial machines operating in difficult environmental conditions, commercial and special vehicles, motor vehicles, hydraulic equipment, working machines, other machines and equipment for special purposes.



Specifications:

Power: 40 kW (80 kW max)

Torque: 700 Nm (1000 Nm max)

Speed: 1200 rpm

Power connection: 300÷750 VDC

Weight: 75 kg

Dimensions: Ø0.388×0.208 m

Download folder

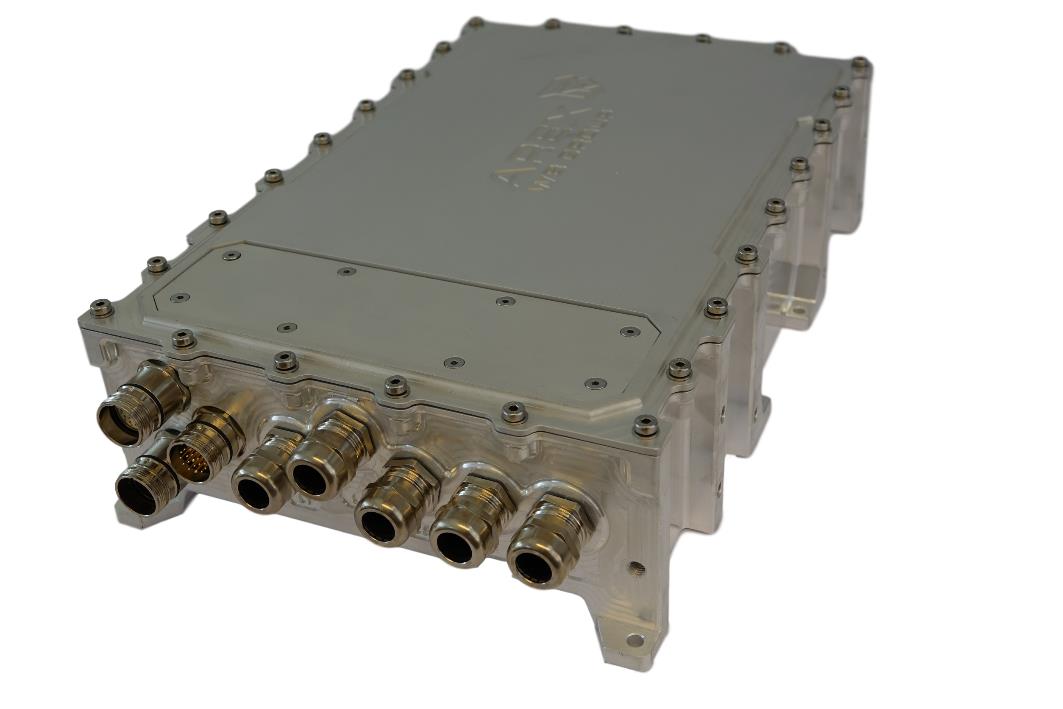

STS-203

Drive Controller

The STS-203 electric motor controller is designed to power and control the operation of AC electric machines used in: electric vehicles, electric work machines and industrial equipment operating in harsh environmental conditions.

Specifications:

Power: 50 kW (80 kW max)

Power supply: 0÷850 VDC

Weight: 12.2 kg

Dimensions: 0.42×0.25×0.10 m

Download folder

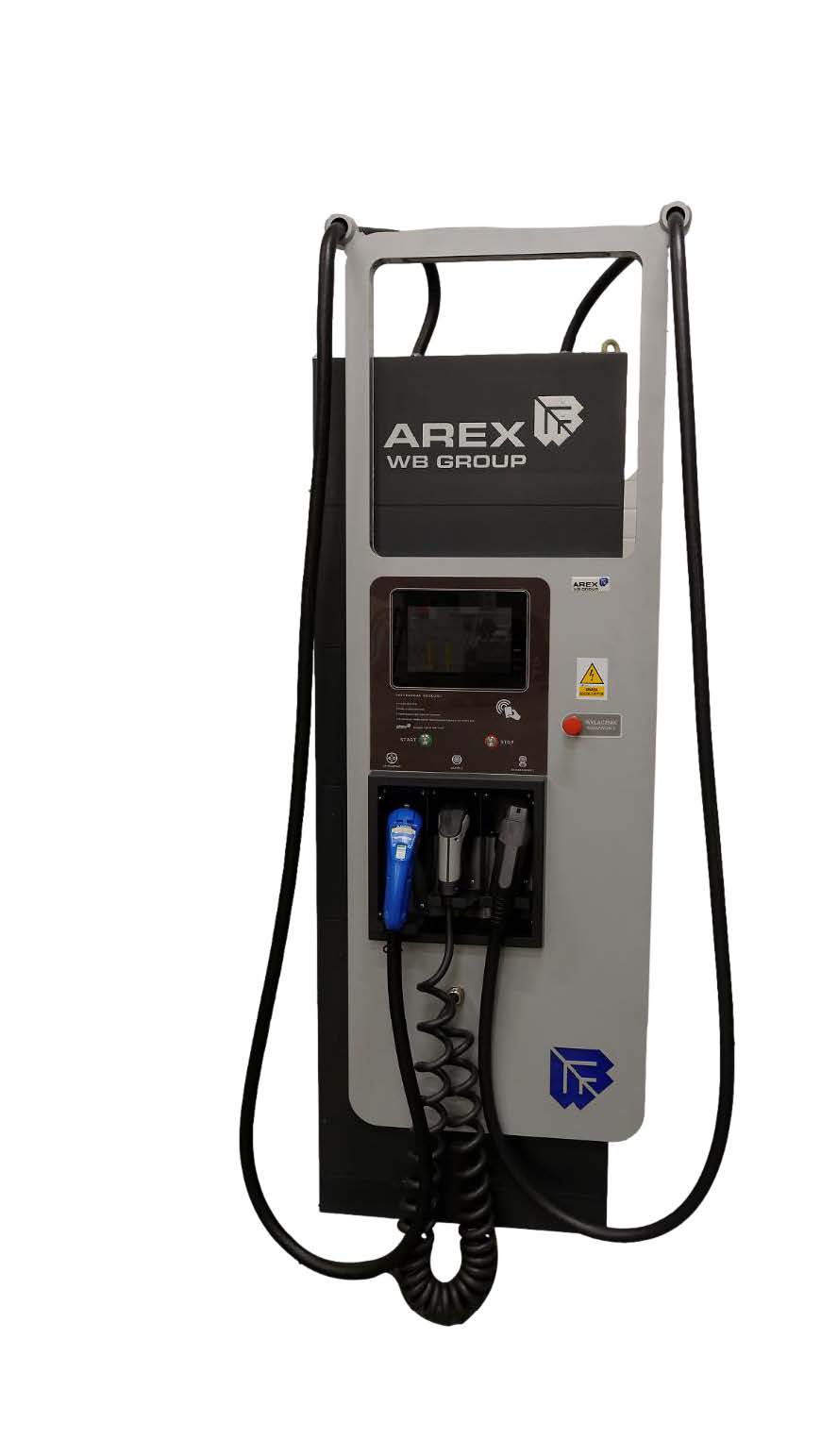

PBC-202

Bi-directional Charger

The PBC-202 three-phase bi-directional stationary charger is designed to: charge lithium-ion energy storage devices, optimise charging (CC, CV, CP) in conjunction with the BMS system, fast charge vehicles with CHAdeMO and CCS Combo 2 connectors, charge vehicles with AC Type 2 connectors.

Specifiactions:

Charging system: CHAdeMO, CCS Combo 2, AC TYPE 2

Power output: 50 kW

Voltage range: 300÷850 VDC

Weight: 210 kg

Dimensions: 0.6×0.77×2.18 m

Download folder

Contact us to find out how you can start using your own electricity storage
